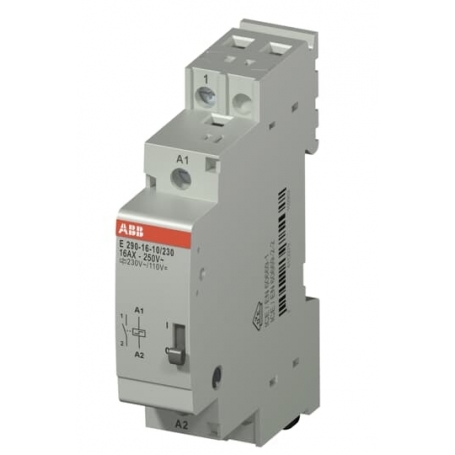

ABB 2TAZ312000R2011 E290-16-10/230 Current surge switch coil 230 VAC/ 110 VDC, 16 A, 1 NO

Power surge switches are electromagnetically actuated devices with which a simple, energy-saving and safe lighting control can be realized. As a rule, a control of current surge switches via pulse probes is used where the light is to be operated from at least three different locations. Through each control pulse sent to the coil magnet system, the device switches back to the previous position and holds it mechanically up to the next control pulse. In the event of a voltage failure, it is ensured that the last switching position is held mechanically. This technology helps significantly reduce the electrical power loss and power consumption of the devices. Due to the very quiet switching noises, power surge switches are also suitable for use in public buildings, hotels, as well as in private living areas. Depending on the type, the devices can be controlled with common control voltages and are suitable for a rated current of 16 A or. 32 A.
