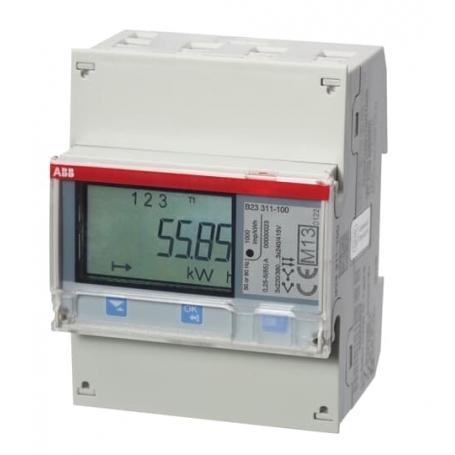

ABB 2CMA100168R1000 B23 311-100 three-phase counter “Silver”, 3 phases, direct connection 65A

The following values are output via a seven-segment display with up to 7 digits: active energy (class 1) and reactive energy (class 2) for import and export, power, currents, voltages (L-L; L-N), frequency, cos phi, power factor and apparent power, both per phase and total. The communication can take place via the integrated infrared interface for connecting a KNX module. The energy meter has 2 fixedly configured inputs and outputs. The output can optionally be used as a pulse output for outputting the active or reactive energy or as an alarm output. Up to 25 alarm values (swell values with time delay) can be set here. The inputs serve to control the tariffs or to count external pulses. The resettable intermediate counter allows the measurement of individual intervals. In addition, the counter records up to 4 tariffs. The counter is calibrated according to MID and approved according to IEC. The installation width is 4 DIN modules.
