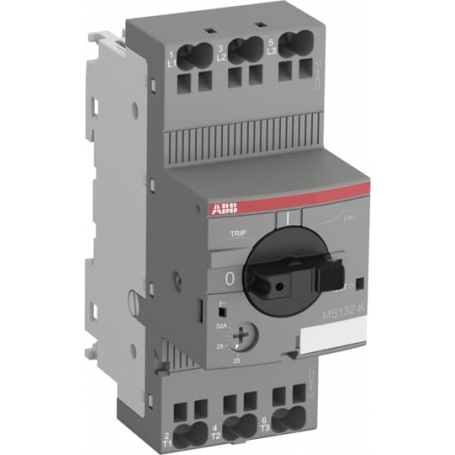

ABB 1SAM350010R1011 MS132-16K motor protection switch with push-in terminals,

Motor safety switch MS132...K in screwless push-in spring connection technology with thermal and electromagnetic protection stands for the compact and powerful series with high short-circuit switch-off capability for engine protection up to 15 kw (400 W) with a module width of 45 mm. The temperature-compensated device has a rotary handle operation with a clear switching position indicator I/TRIP/0. In addition, MS132...K has a short-circuit display. The rotary handle can be locked directly in the 0 position by means of a padlock. Auxiliary, signal and short-circuit alarm contacts as well as undervoltage and working current triggers can be installed without tools. Push-in spring variants are available for auxiliary and signal contacts, these also fit the motor protection switches in screw technology. Direct adapters to protectors of the AF...K series allow the simple construction of compact starter combinations. Protective housing as well as accessories for control cabinet and door mounting supplement the range. The push-in spring connection clamps permit toolless and time-saving insertion of the connection lines for rigid wires and strands with wire end sleeves, without cords can also be connected; a subsequent readjustment of the connections is eliminated.
