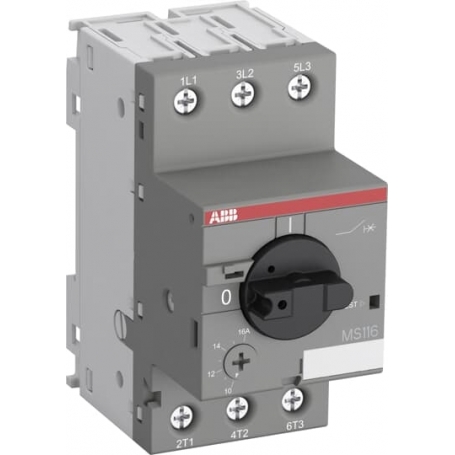

ABB 1SAM250000R1005 MS116-1.0 Engine Circuit Breaker Trigger class 10A, 0.63 ... 1.0 A

Motor protection switch MS116 with thermal and electromagnetic protection stands for the compact and economical series for engine protection up to 15 kw (400 W) with a module width of 45 mm. The temperature-compensated device has a rotary handle operation with a clear switching position indicator I/0. The rotary handle can be locked in the 0 position by means of a closing device. Auxiliary and signal contacts as well as undervoltage and working current triggers can be installed without tools. 3-phase rails for 65 A or for 100 A and feed-in blocks for 25 mm2 or 35 mm2 permit the joint feeding of several motor protection switches. Protective housing as well as accessories for control cabinet and door mounting supplement the range.
